DIY ESP32 Drone Frame 98mm – 8520 Coreless Motor 3D Printed Frame

DIY ESP32 Drone Frame 98mm

The DIY ESP32 Drone Frame 98mm is a compact 3D-printed drone frame designed for educational electronics projects, hobby drone builds and ESP32-based experimentation.

With a 98mm frame size and compatibility with suitable 8520 coreless motors, this frame provides a practical platform for building a small DIY quadcopter and experimenting with drone electronics.

It is especially suitable for students, makers, robotics enthusiasts and hobbyists who want to understand how a mini drone is assembled.

Designed for 8520 Coreless Motors

This DIY ESP32 Drone Frame 98mm is designed for use with suitable 8520 coreless motors.

The compact motor mounting areas are intended for the small motors commonly used in mini and educational drone projects.

Before purchasing, please verify that your 8520 motors match the frame’s motor mounting dimensions.

ESP32 Drone Project Frame

The frame can be used as a mechanical base for an ESP32-based DIY drone project.

Depending on your chosen electronics, the completed drone can include an ESP32 board or compatible flight-control electronics, motor drivers, battery and other required components.

Electronic components are not included with this product.

3D Printed Educational Drone Frame

The frame is ideal for students and hobbyists who want to learn through practical experimentation.

Instead of purchasing a complete ready-to-fly drone, users can assemble their own project and understand how the different parts work together.

Students can explore concepts such as:

• Drone structure
• Quadcopters
• Motor control
• Flight control
• ESP32 development
• Electronics
• Wireless communication
• Robotics
• 3D printing
• DIY engineering

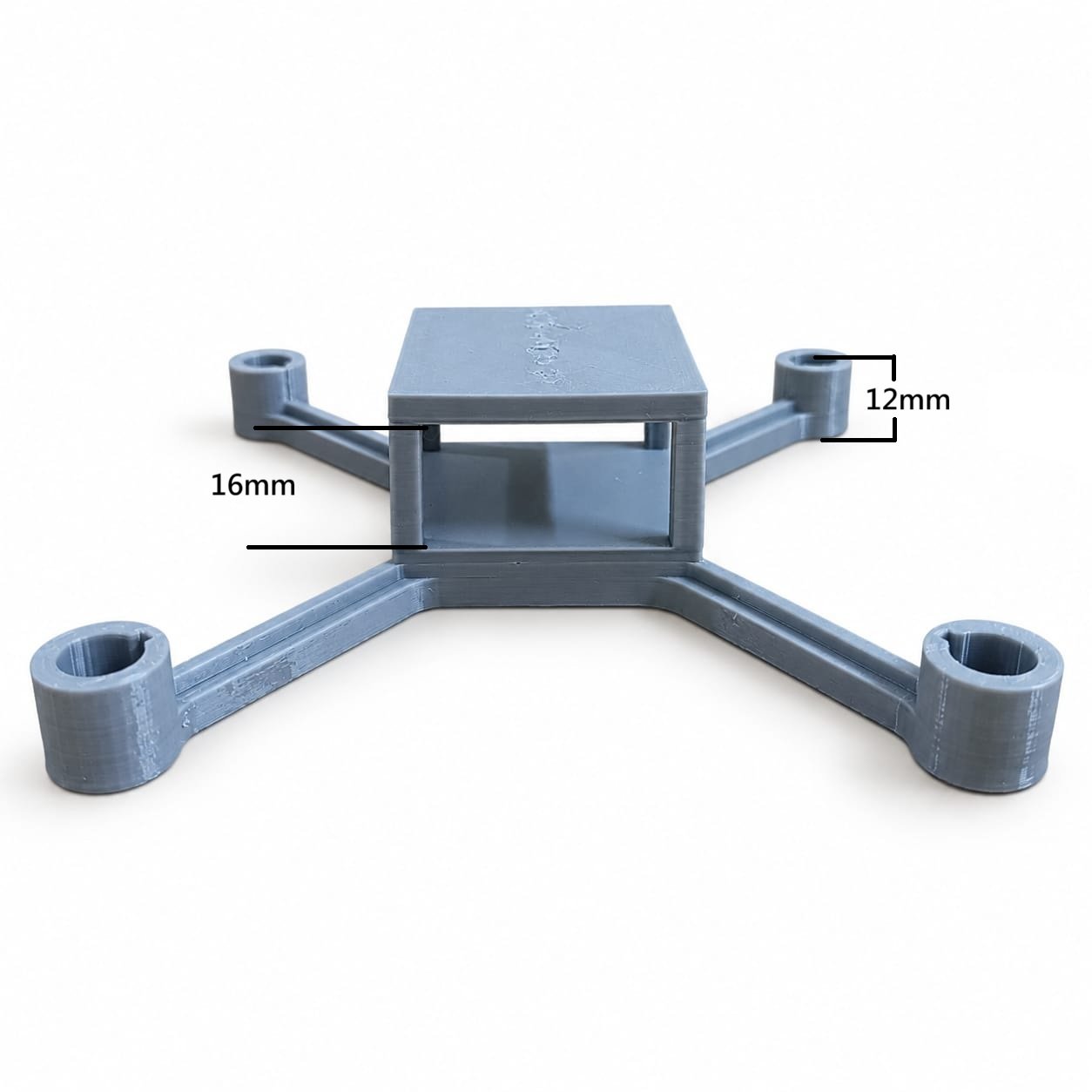

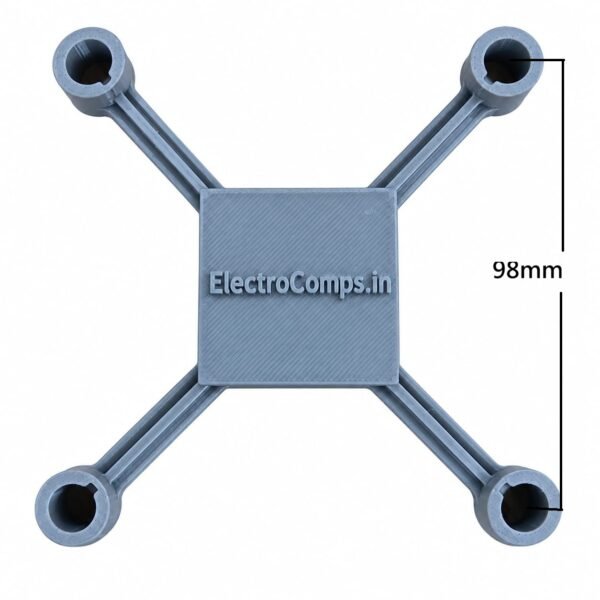

98mm Mini Drone Frame

The compact 98mm drone frame is designed for small educational and hobby drone builds.

Its small form factor makes it useful for experimenting with lightweight electronics and compact drone components.

The final weight and flight performance will depend on the electronics, motors, battery and other components selected by the builder.

Build Your Own Mini Quadcopter

Use the frame as the foundation for your own mini quadcopter project.

A typical compatible build may require:

• 4 × 8520 coreless motors
• Compatible propellers
• ESP32 or suitable flight-control electronics
• Motor driver electronics
• Battery
• Wiring and connectors
• Suitable mounting hardware

These components are not included and must be purchased separately.

Educational Electronics and Hobby Applications

The DIY ESP32 Drone Frame 98mm can be used for:

• ESP32 drone projects
• Mini quadcopter projects
• Robotics projects
• School STEM projects
• Electronics experiments
• DIY drone development
• 3D printing projects
• Engineering prototypes
• Hobby drone builds
• Student innovation projects

Why Choose a 3D Printed Drone Frame?

A 3D-printed frame is a useful option for makers who enjoy building and experimenting with their own designs.

It provides a dedicated structure for mounting compatible drone components and allows students and hobbyists to explore the relationship between mechanical design and electronics.

The frame can also be used as a starting point for future modifications and custom project development.

Important Compatibility Information

Before ordering, verify the dimensions of your components.

In particular, check:

• Frame size: 98mm
• Motor type: 8520 coreless motor
• Motor mounting dimensions
• Propeller clearance
• Electronics dimensions
• Battery dimensions
• Required mounting hardware

Component compatibility can vary between manufacturers and models, so dimensions should always be checked before assembly.

Package Contents

What You Get

1 × 3D Printed DIY ESP32 Drone Frame (98mm)

What Is NOT Included

This is a frame-only product.

The following are not included:

• ESP32 board
• 8520 coreless motors
• Propellers
• Motor driver
• Flight controller
• Battery
• Battery charger
• Receiver
• Wiring
• Screws or other electronics

Please purchase the required components separately.

Frequently Asked Questions

What is included with this product?

Only the 98mm 3D-printed drone frame is included.

Are the 8520 motors included?

No. The frame is designed for suitable 8520 coreless motors, but the motors are not included.

Is the ESP32 included?

No. This is a frame-only product. The ESP32 board and other electronics must be purchased separately.

Can I use this frame for an ESP32 drone project?

Yes. The frame is intended for DIY and educational projects where compatible ESP32-based electronics can be installed.

Is this a complete drone kit?

No. It is only the 3D-printed frame and does not include the electronics or other components required to build a complete flying drone.

Is this frame suitable for students?

Yes. It is suitable for educational electronics, robotics, STEM and hobby projects where students can learn about drone construction and control.

Can I modify the frame?

The frame can be used as a starting point for DIY experimentation and customization, subject to the capabilities of the builder and the compatibility of the selected components.
